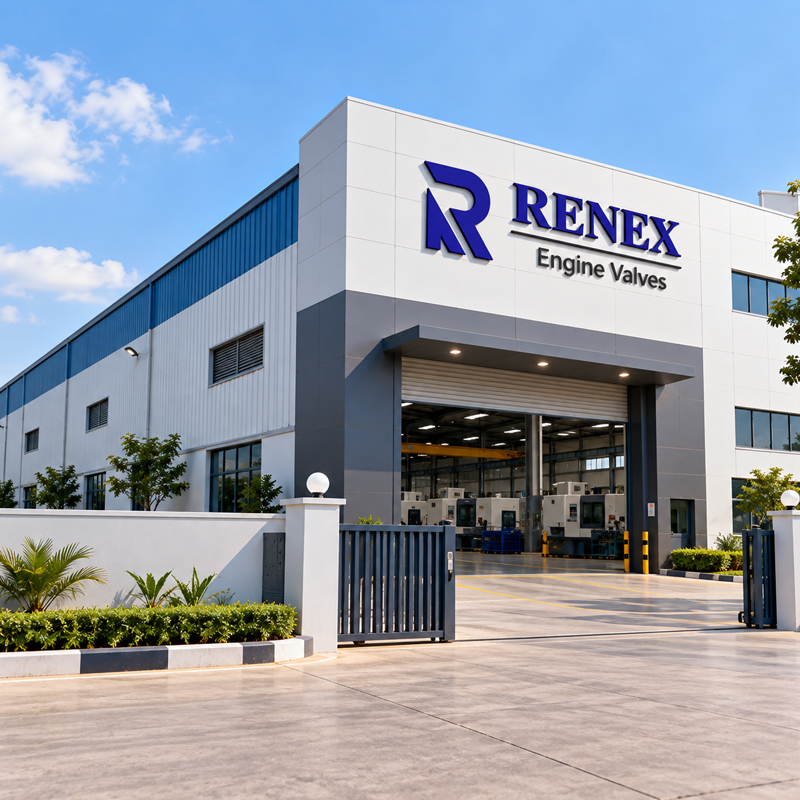

ABOUT US

Renex Valves is a leading Manufacturer and Exporter of Inlet – Exhaust Valves suitable for Two & Three Wheelers, Car, Truck, Tractor, Agricultural, Generator, Earth Movers and Marine Engines.Engine Valves made up of Alloy steel with the most advanced manufacturing procedure and a expertise of more than 4 decades.

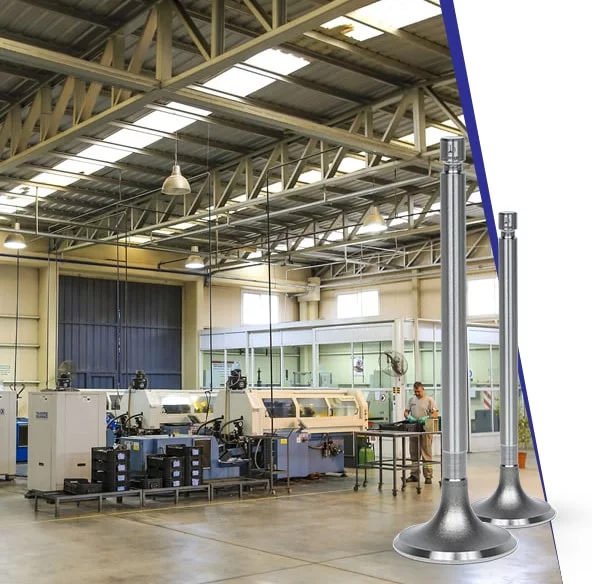

One of the oldest and renowned company dealing in Valve Train Components and a preferred supplier to customers worldwide. Skilled Man-power in force, modernized CNC controlled machines in production line-up, and a well centralized management team for serving O.E., OEs, Aftermarket & Exports.

We are an ISO 9001:2015 Accredited Company.

We also Design & Develop customized product solutions as per requirements of customer.

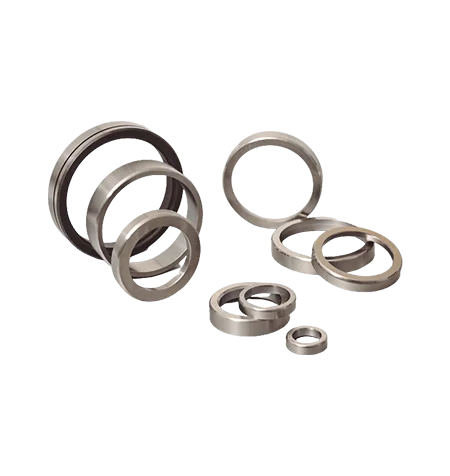

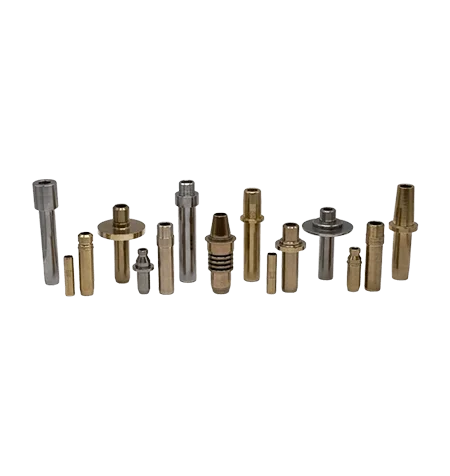

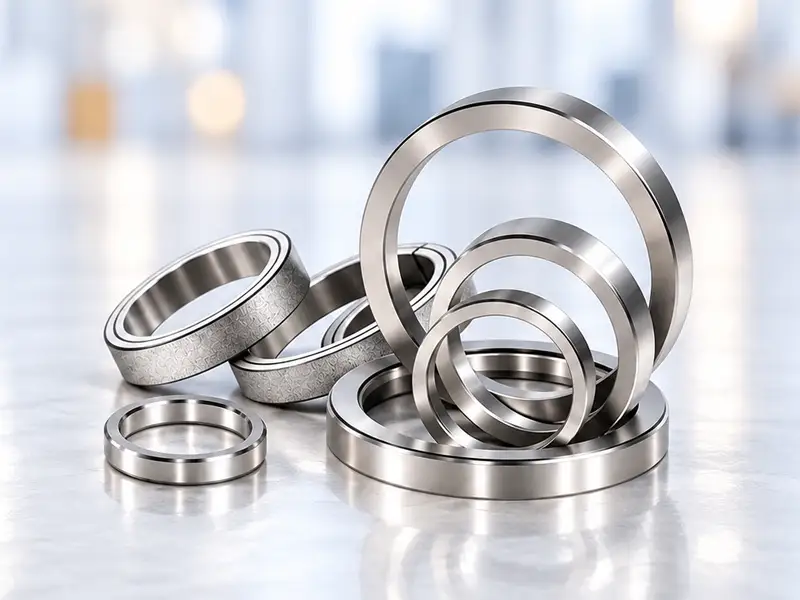

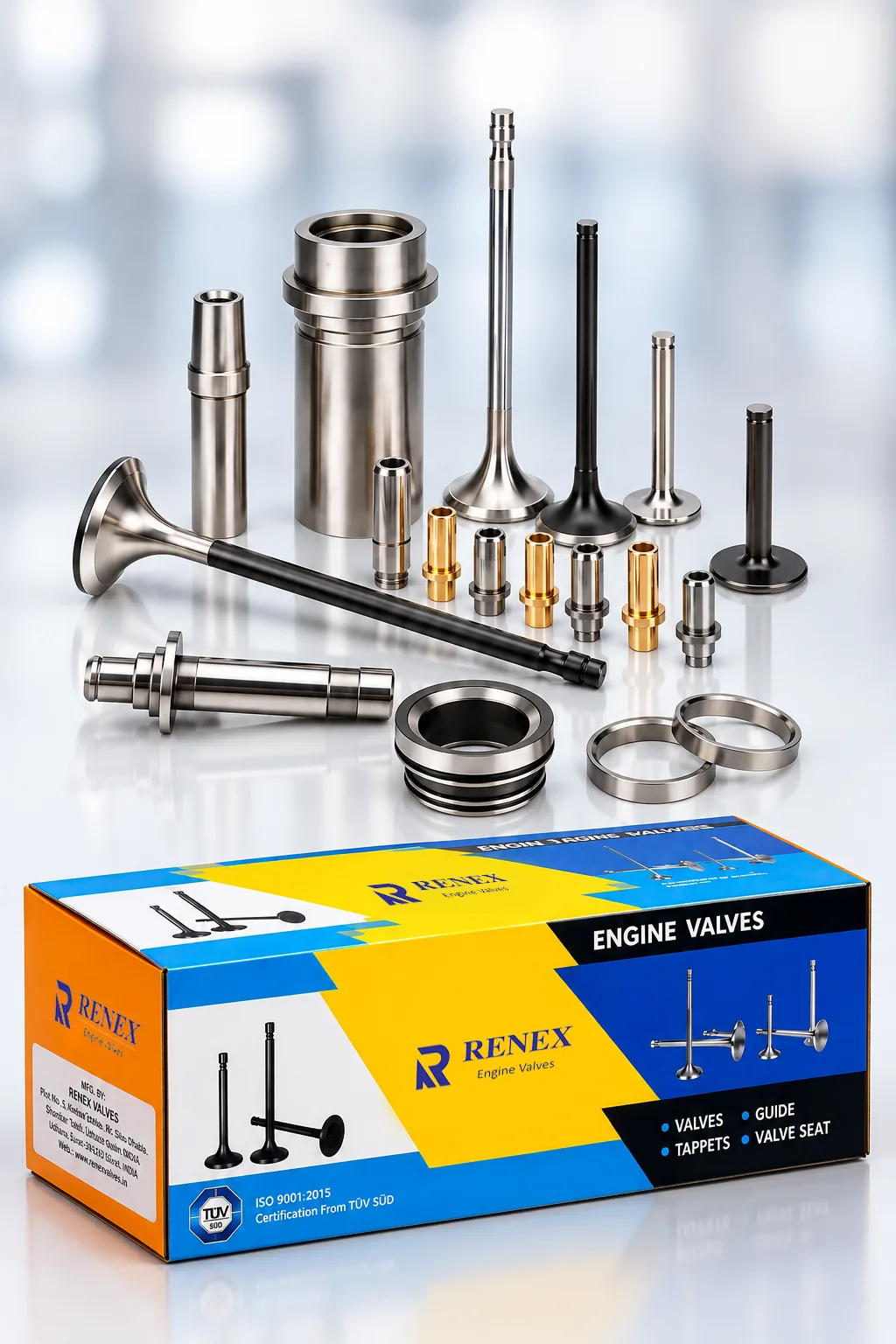

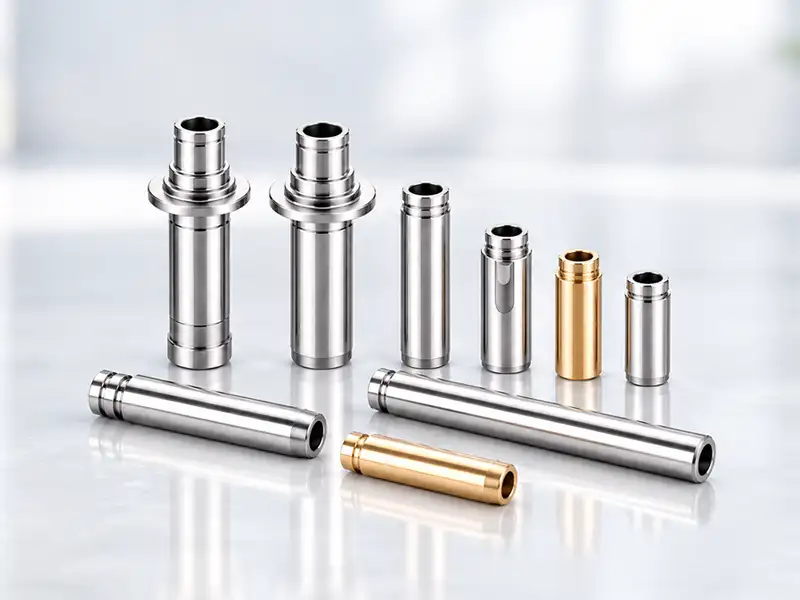

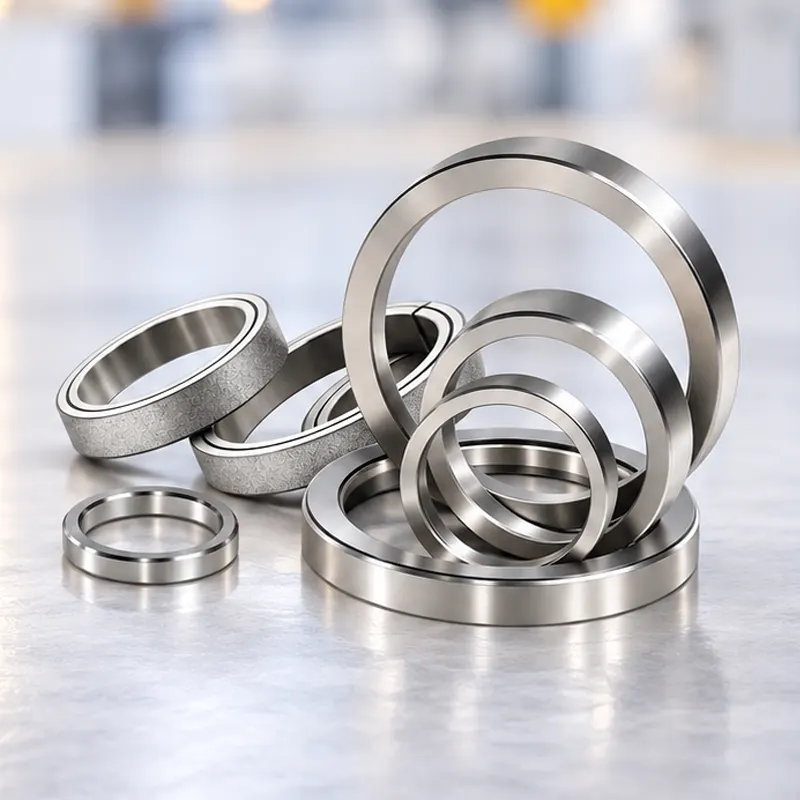

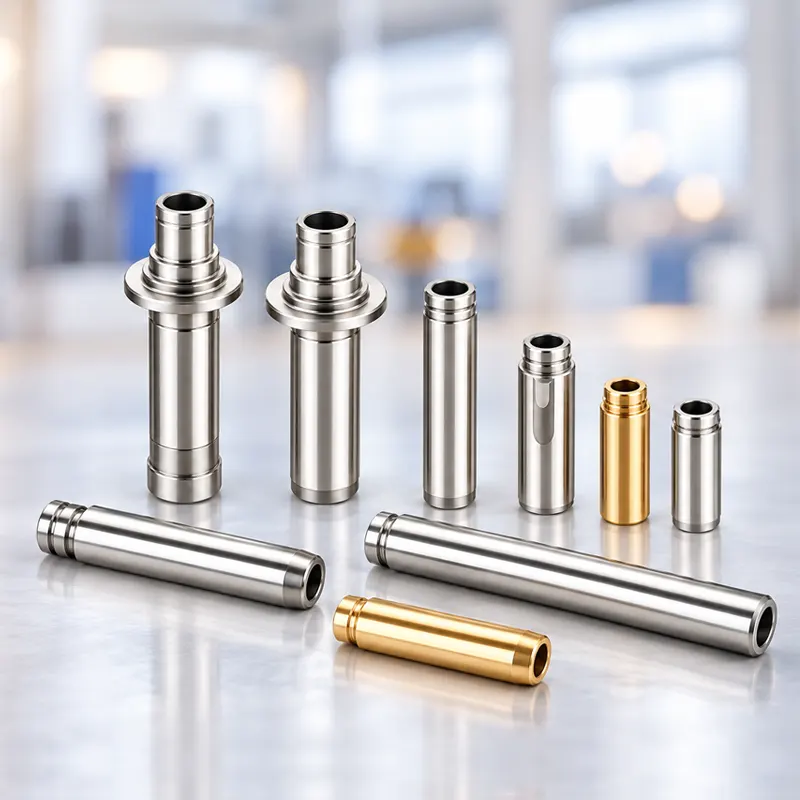

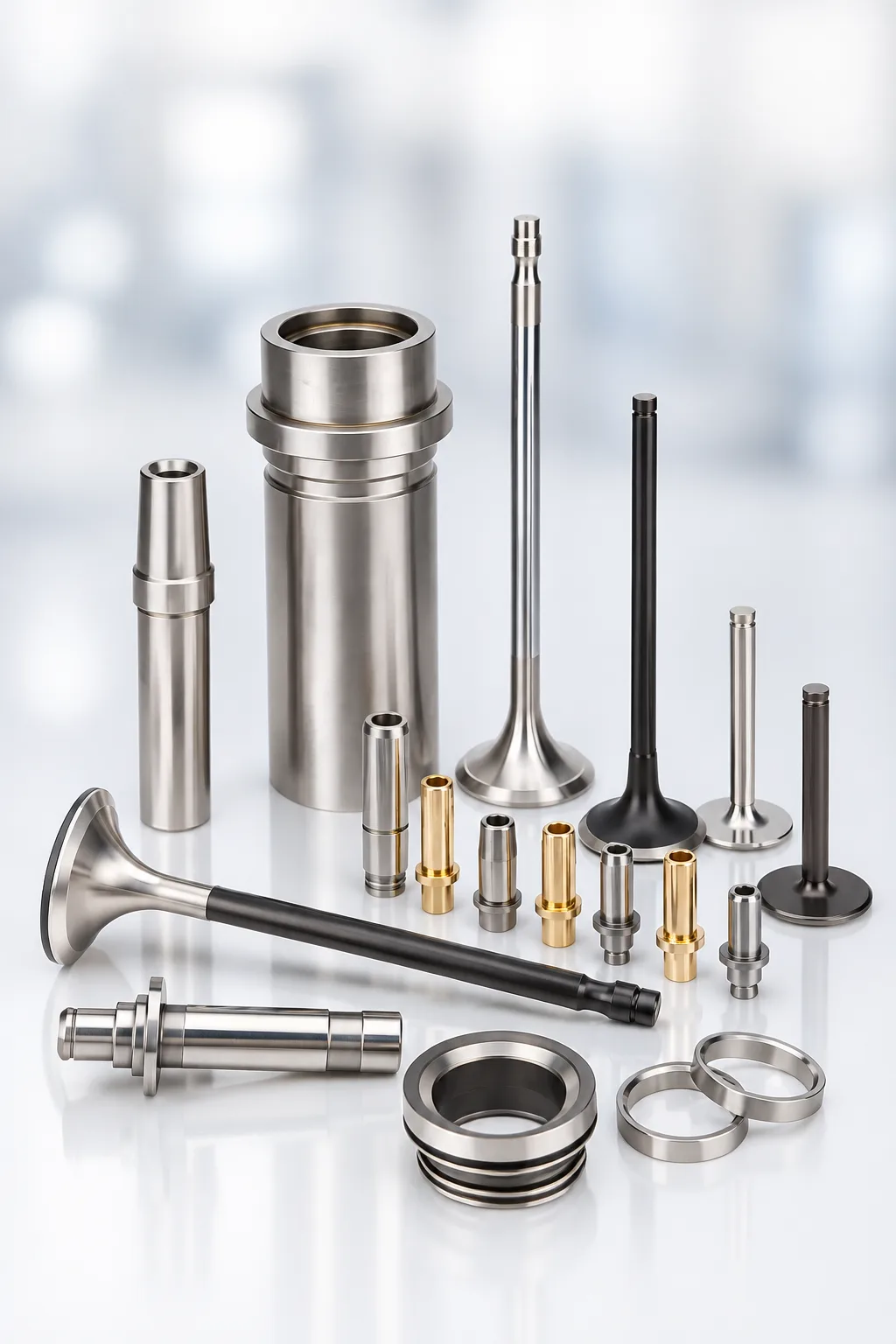

Engine Valves ǀ Valve Guide ǀ Valve Seat ǀ RENEX VALVES Manufacturer

PRODUCTS

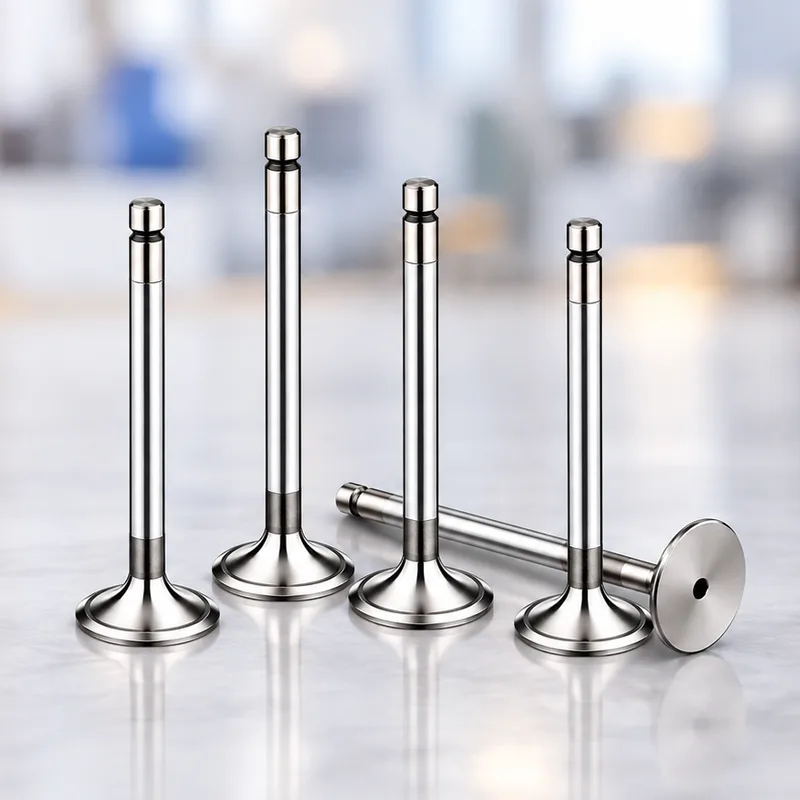

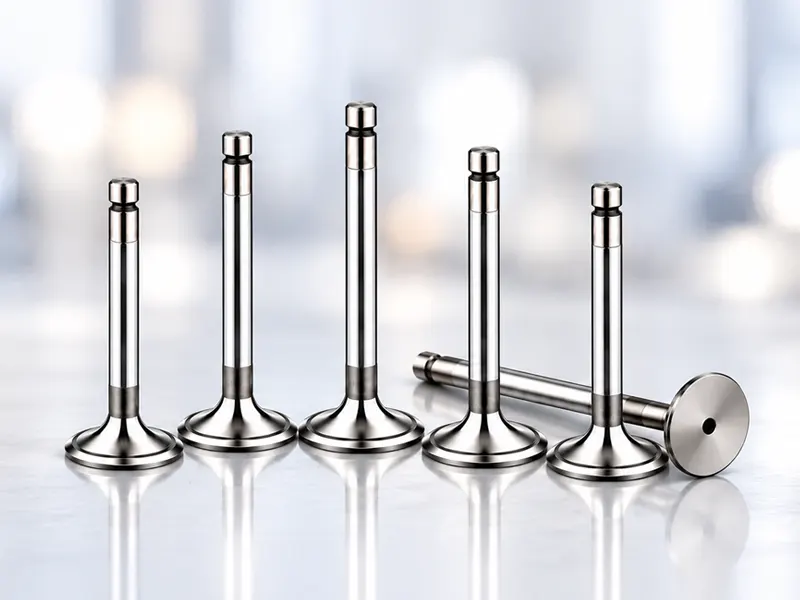

Engine valves is one of the most critical and precision part in any of the IC engine. It is manufactured with electrically actuated upsetting and hydraulically forged into desired shape. Then with the help of precision machining it is carved into a best performing finished products.

PRODUCT APPLICATION

AGRICULTURAL ENGINES
AUTOMOTIVE ENGINES
GENERATORS
HEAVY TRUCKS
HEAVY EARTH MOVERS
INDUSTRIAL ENGINES
MARINE ENGINES
PASSENGER CARS ( LCV’s )
RAILWAYS

A	I	O
ALFA ROMEO	INTERNATIONAL HARVESTER	OPEL
AUSTIN BMC	ISUZU	OPEL DIESEL
B	IVECO	P
BEDFORD	J	PERKINS
BMW	JEEP DIESEL	PEUGEOT
C	JOHN DEERE	R
CATERPILLAR	K	RENAULT DIESEL
CITROEN	KIA	RUGGERINI
CUMMINS	KLOECKNER – HUMBOLDT DEUTZ	S
D	L	SAAB
DAEWOO	LADA DIESEL	SKODA
DAF	LANCIA	SUBARU
DAHITSU	LAND ROVER	SUZUKI
F	LEYLAND DIESEL	T
FIAT	LISTER	TATA
FIAT – DIESEL	LOMBARDINI	TOYOTA
FIAT AGRI – NEW HOLLAND	LOTUS	V
FORD DIESEL	M	VOLKSWAGEN
FORD TRACTOR	MAN	VOLVO
G	MAZDA	VOLVO DIESEL
GARDNER	MITSUBISHI	Z
H	MITSUBISHI DIESEL	ZETOR
HONDA	N
HYUNDAI	NISSAN DIESEL	& +150 Brands

SAE	DS	JIS	DIN	Tensile N/MM2	C	Si	Mn	Ni	Cr	Mo	N
SIL1	EN 52	SUH 1	1.4718	900-1100	0.40-0.50	3.00-3.50	0.60-MAX	0.60-MAX	7.50-9.50	—	—
—	—	SUH 3	1.4731	880	0.35-0.45	1.80-2.50	0.60-MAX	0.60-MAX	10.00-12.00	0.70-1.30	—
—	—	SUH 11	—	900-1100	0.45-0.55	1.00-2.00	0.60-MAX	0.60-MAX	7.50-9.50	—	—
EV-12	21-2N	—	1.4875	900-1150	0.50-0.60	0.08-0.25	7.00-9.50	1.50-2.75	19.25-21.50	—	0.20-0.40
EV-8	21-4N	SUH 35	1.4871	900-1150	0.48-0.58	0.35 MAX	8.00-10.00	3.25-4.50	20.0-22.50	—	0.35-0.50
EV-15	23-8N	—	1.4866	850	0.28-0.38	0.50-1.00	1.50-3.50	7.00-9.50	22.00-24.00	—	0.25-0.40
EV-4	21-12N	SUH 37	—	800	0.15-0.25	1.00 MAX	1.00-1.60	10.00-12.00	20.50-22.50	—	0.15-0.35
